Schematic Editor - Visual Rigging Made Simple

Tired of hunting through the Outliner just to understand how your rig is built?
Frustrated with endless nested lists and no visual clue where constraints or parenting chains live?

wk_Schematic gives you a better way:

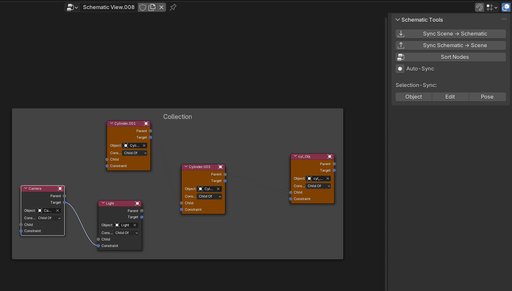

A true schematic view for Blender, where all parenting and constraint relationships are clear, visual, and editable.

What does it do?

• Instantly see your rig’s structure – no foldouts, no guessing
• Connect objects, bones and constraints with simple node links
• Create Child Of, Copy Rotation, IK (including Pole Vector) and all other Blender constraints directly in the schematic
• Organize collections visually, instead of dragging through long Outliner lists
• Auto-Sync lets you reflect schematic edits live in your 3D scene

Why this tool?

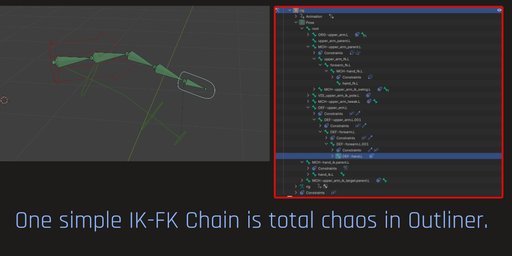

Blender’s Outliner is technically a tree – but a linear one.
To grasp a complex hierarchy, you click open one level after another.
It’s easy to lose track of what's connected to what, especially in big rigs.

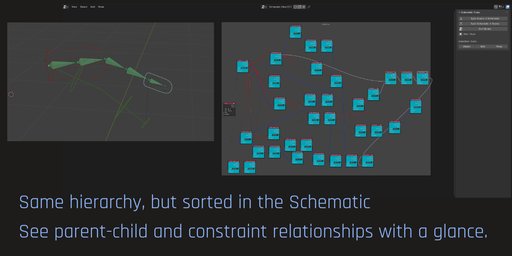

wk_Schematic replaces the guesswork with a node-based visual layout – like you know it from Shader or Geometry Nodes.
Now, rigging becomes visual, intuitive, and maintainable.

Huge feature update in 1.5.0:

• Multiple Constraints possible per node (objects or bones)
• Add and remove Constraint sockets

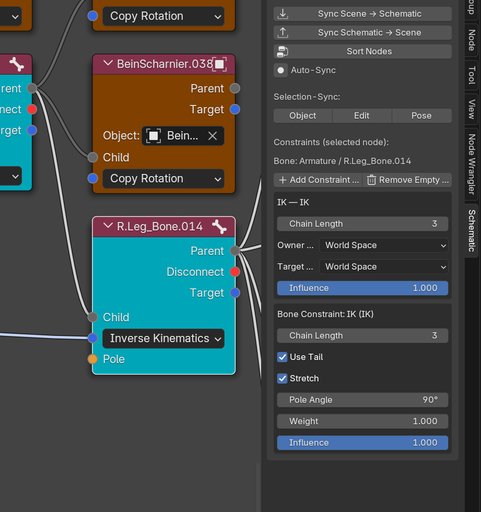

• Display and edit most important parameters of constraints in Schematic's side panel

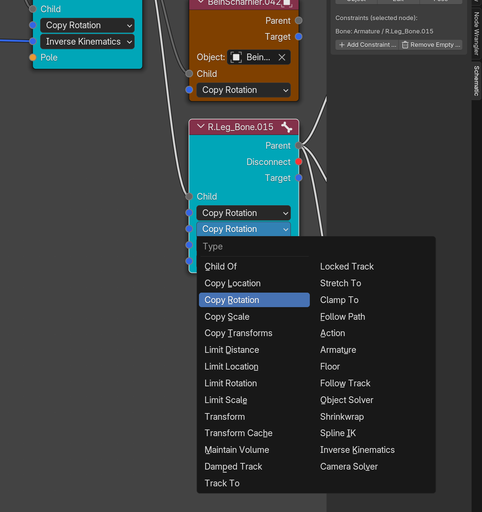

• All kinds of constraints chosable in drop down menues
• If you chose a different constraint in the drop down and sync, the new constraint will be renamed in scene. (e.g. CopyRotation -> CopyScale)
• You can now parent objects to bones

A nod to Softimage users

If you've used Softimage, this will feel familiar:
Inspired by its legendary schematic view, wk_Schematic reimagines that clarity – now inside Blender.

But unlike the original, this view is fully interactive:
You can build, modify, and reorganize rigs with real scene impact.

Built by a Rigger. For Riggers.

I used Softimage for years. Blender is more powerful in nearly every area – except when it comes to visual clarity in rigging. This add-on is my attempt to close that gap.
Collection Management in Schematic

Frames = Collections:

• Collections from your Blender scene are shown as framed groups (Nodes inside a labeled box). This makes it easy to manage structure visually.
• Move between Collections:
  Press Alt + P to unparent a node from its current collection (frame). Then drag it into another frame to assign it to a different collection.
  → After syncing, the object will be moved to the new collection in the Blender scene.

Selection Shortcuts

• L – Select next parent
  Selects the direct parent of the currently selected node.

• Shift + L – Select next child
  Selects all direct children of the currently selected node.

• Ctrl + L – Select entire hierarchy
  Selects the entire tree above and below the selected node (full parent-child chain).

These shortcuts are especially helpful when working with large rigs or complex object structures.

Status & Roadmap

wk_Schematic is a work in progress.
In future versions I plan to implement object data display and the ability to work with Driveres.

Feature Requests Welcome

What would you love to see?
Let me know what features you’re missing – wk_Schematic is growing fast, and your feedback shapes the roadmap.
